Goods lifts that make moving heavy loads easy work
Whether you need to move just goods or require a goods attendant lift for staff to accompany stock, our heavy-duty lifts are reliable and sturdy. This range is the perfect solution for all building types and a favourite for back-of-house applications.
The modular design, along with low pit and headroom requirements, makes it ideally suited to moving bulky and heavy goods, up to 2000 kg, between floors and where space is limited.
The Goodsmaster comes supplied as a structure-supported lift, complete with non-fire-rated sheet steel cladding panels and a black RAL9005 finish. It has a choice of two door arrangements and a ramp option, if a pit is not possible. Of course, they comply fully with all the essential safety requirements and regulations.

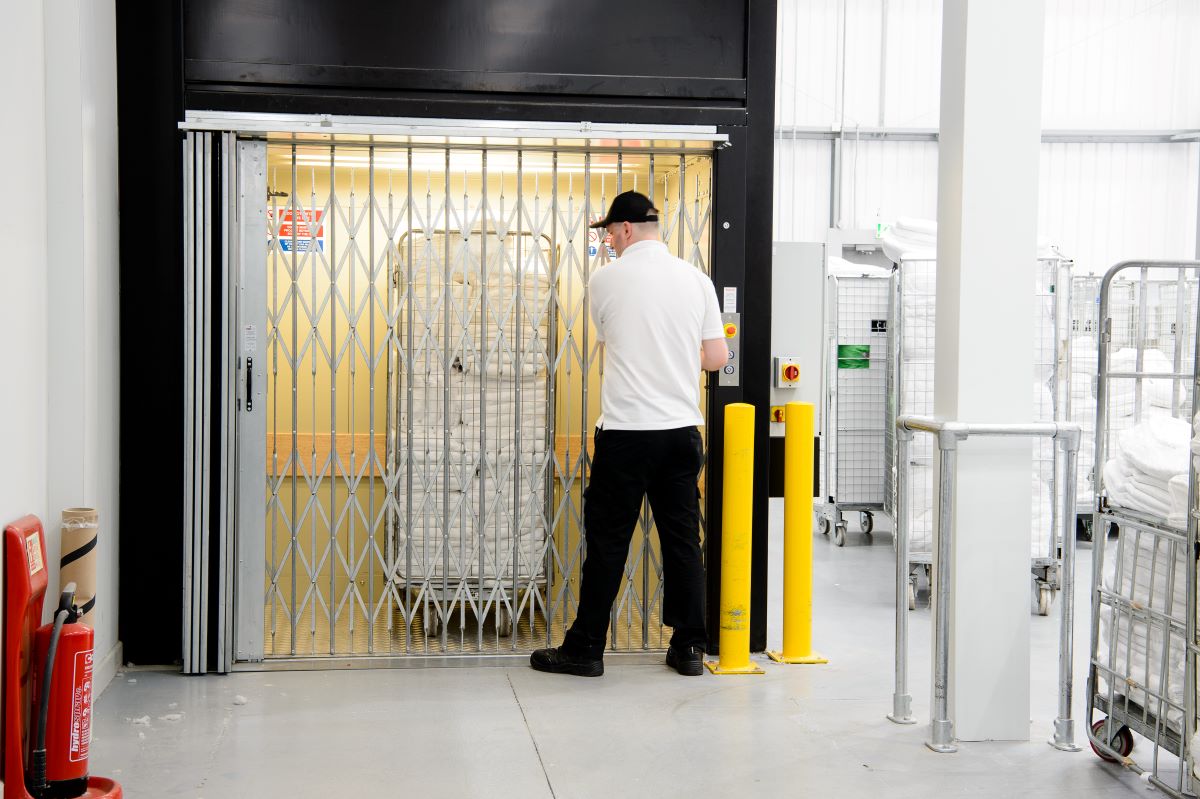

The lift car comes with interlocking gates to prevent load movement during travel, bump rails and the attendant option, which enables up to 2 trained attendants to travel with the load (with added car controls and safety features).

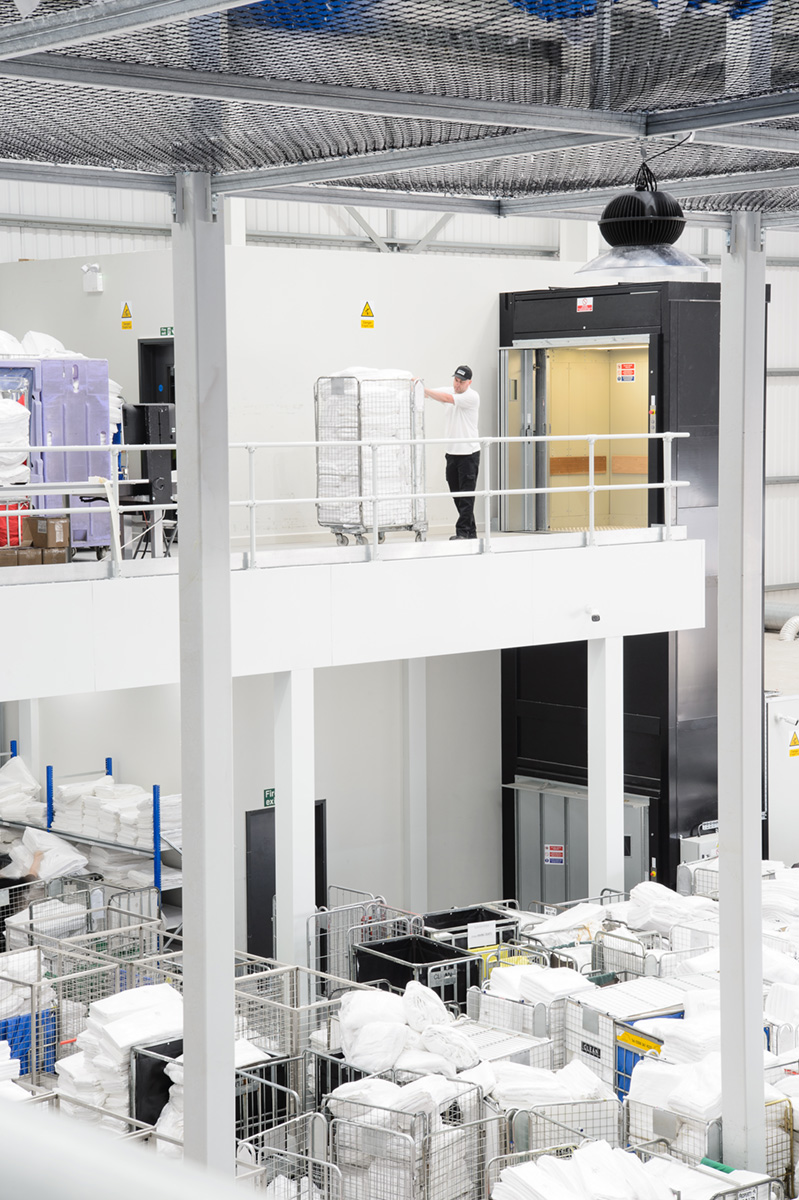

Whether used as a mezzanine lift, warehouse lift, or in one of a variety of other environments, our reliable work-horse is a cost-effective solution that will handle your loads for years to come.
If safe and reliable material handling and keeping your shelves stocked is vital for your business, then trust in our lifting equipment.
The range at a glance
| Model | Load | Travel (max) |
Headroom
|
Pit depth* | Speed of travel |
Shaft sizes** | Lift controls | Configurations | Power supply |
Door type |
|---|---|---|---|---|---|---|---|---|---|---|
| Goodsmaster CD Goods only lift |
500-2000 kg | 9m | 2500-2950mm | 100mm pit or ramp | 0.15m/s |
Width 1470-2470mm
Depth 1180-2180mm
|

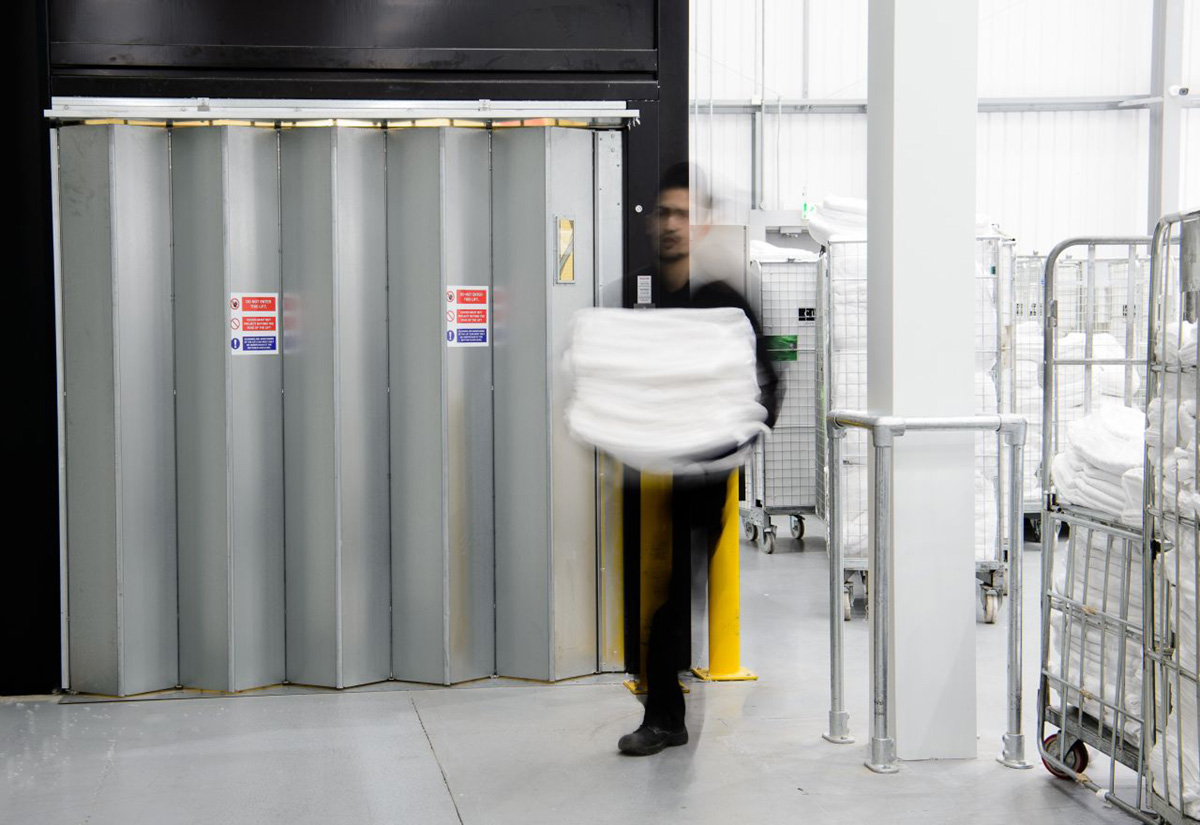

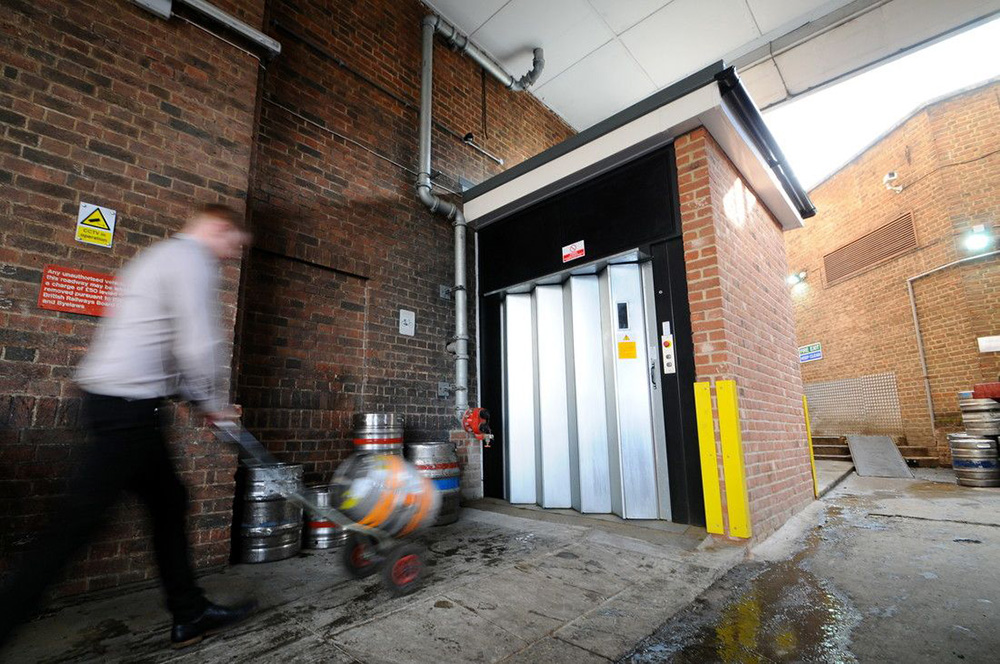

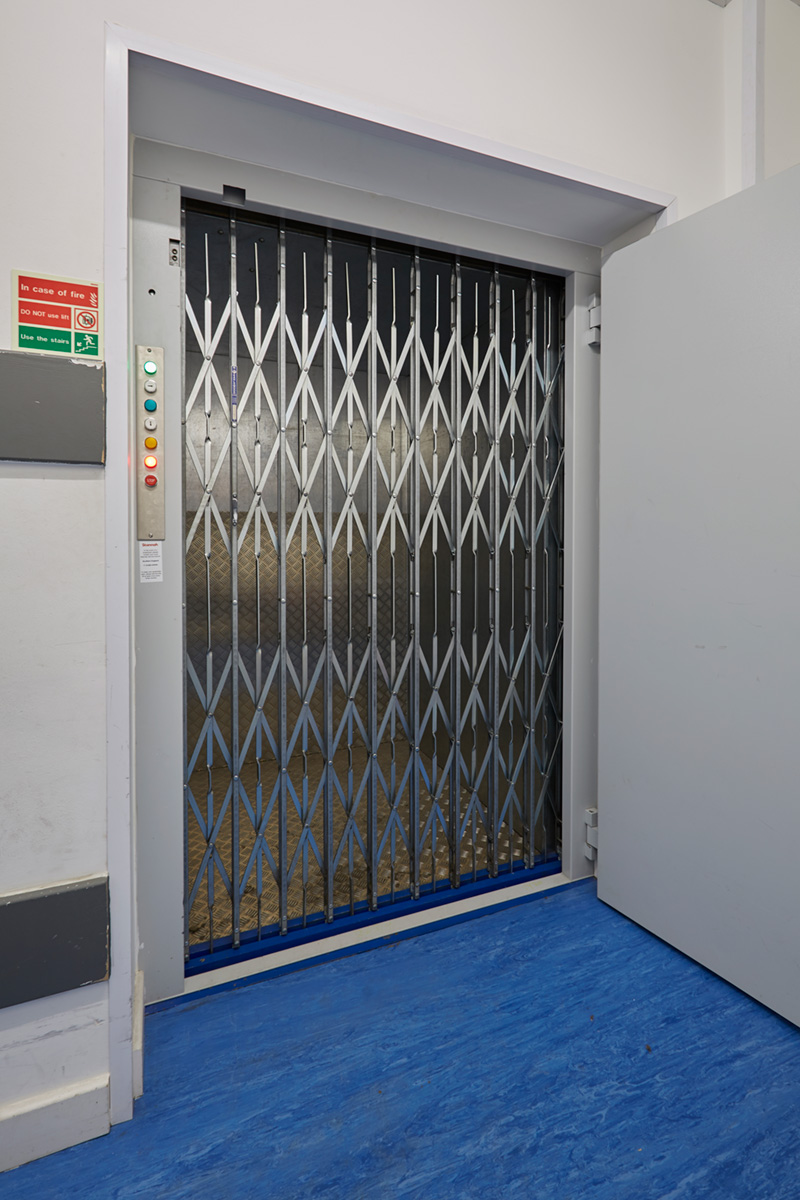

Automatic call & send controls at each landing entrance | Single or through-car | 415V three-phase | Concertina gate or single/ double hinged door |
| Goodsmaster CD Plus Goods attendant lift |

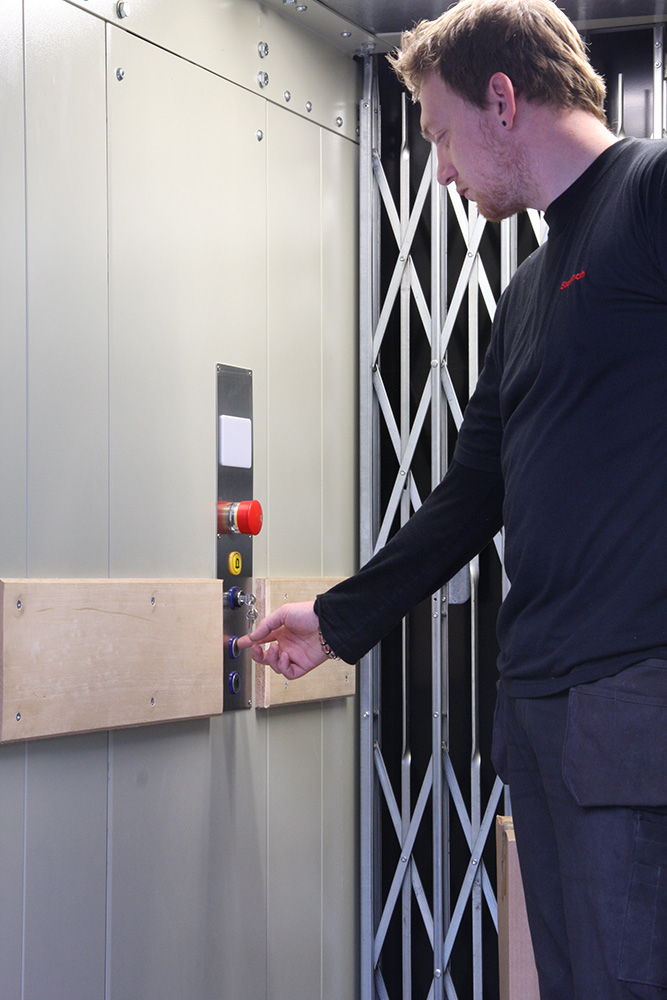

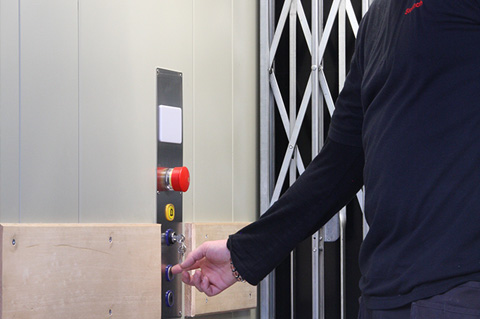

Additional controls & emergency communication in lift car |

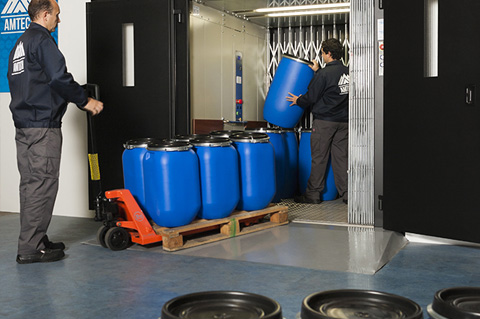

* The Goodsmaster serves at floor level, if you cannot provide a pit, it can be installed to serve 100mm above and a ramp installed. ** Width and depth dimensions are available in 100mm increments.
Looking for a bigger goods lift or different sizes?
No problem. We have a wide range of goods lifts, including bespoke goods lifts with larger capacities and non-standard car sizes. Get in touch to discuss your requirements.
Contact our technical teamFeatures and benefits
Reducing manual handling hazards
Installing a Goodmaster helps reduce the risk of injury associated with manual handling, making the movement of goods faster and safer.
Flexible design
With a range of modular platform sizes and loading capacities, it's easy to find one that fits with your goods lift plans.
Reliable performance
With energy-efficient chain-drive technology and a robust build, our goods lifts are designed to be hard-wearing. They are backed up with regular service visits, and 24/7 support to ensure long life.
Support every step of the way
With over 150 years of experience, Stannah is one of the UK's leading goods lift manufacturers.
Our dedicated team will be beside you from start to finish.
Design & planning
- Goods lift CAD drawings, datasheets and specifications are easily downloaded from our technical area
- Free consultation to find your perfect goods lift specification
- Free site visit to survey your building and find the perfect lift for you
Installation
- We'll help ensure a smooth installation providing an exact goods lift drawing, builders' work requirements and visiting the site for installation readiness
- Typical install time is 8-10 days for a two-stop product
- Once the installation is completed, we test and commission your lift
Planned maintenance
- Includes a 12 month warranty, servicing, and 24/7 emergency callout
- Highly trained Stannah lift engineers through our network of service branches take care of your lift
- Excellent UK-stocked spare parts availability to increase your lift’s life and reduce downtime
How can we help you?
Frequently asked questions
What is a goods lift?
A commercial goods lift, also known as a goods elevator, is a big floor-level lift designed to move heavy loads safely over different floor levels. Some models can take attendants for added convenience. They are commonly used in warehouse, factory, and retail settings to aid back-of-house operations.
Can a goods lift be used for people?
Yes, but only if it’s designed as a goods attendant lift, which can accommodate up to two attendants. These lifts have additional controls and safety measures. If transporting passengers is the primary use, then a passenger or platform lift should be considered.
Can a goods lift be installed outside?
A fully pre-built outdoor shaft must be installed to protect an external goods lift from the elements.
What is the size of a goods lift?
Our most popular goods lift dimension for the UK is a 1600mm wide x 1750mm deep car size, loading capacity between 1000-1500 kg. This size will fit a large pallet, Euro bin, or multiple roll-cages.
How much does a goods lift cost?
A goods lift price will vary depending on the travel, number of stops, configuration, goods lift size, and additional options and finishes. Please contact us for a budget price.
Do you have used goods lifts for sale?
We don’t sell second-hand lifts. These lifts are well-used, so we’d always recommend choosing a new product as it will be energy efficient, have new parts, and include warranty and servicing.
Can a passenger lift be used for goods?
If you’re looking for a specialised dual-purpose lift designed to carry both passengers and goods, that is resistant to knocks, sometimes referred to as a goods-passenger lift then you should consider installing a heavy-duty passenger lift.
